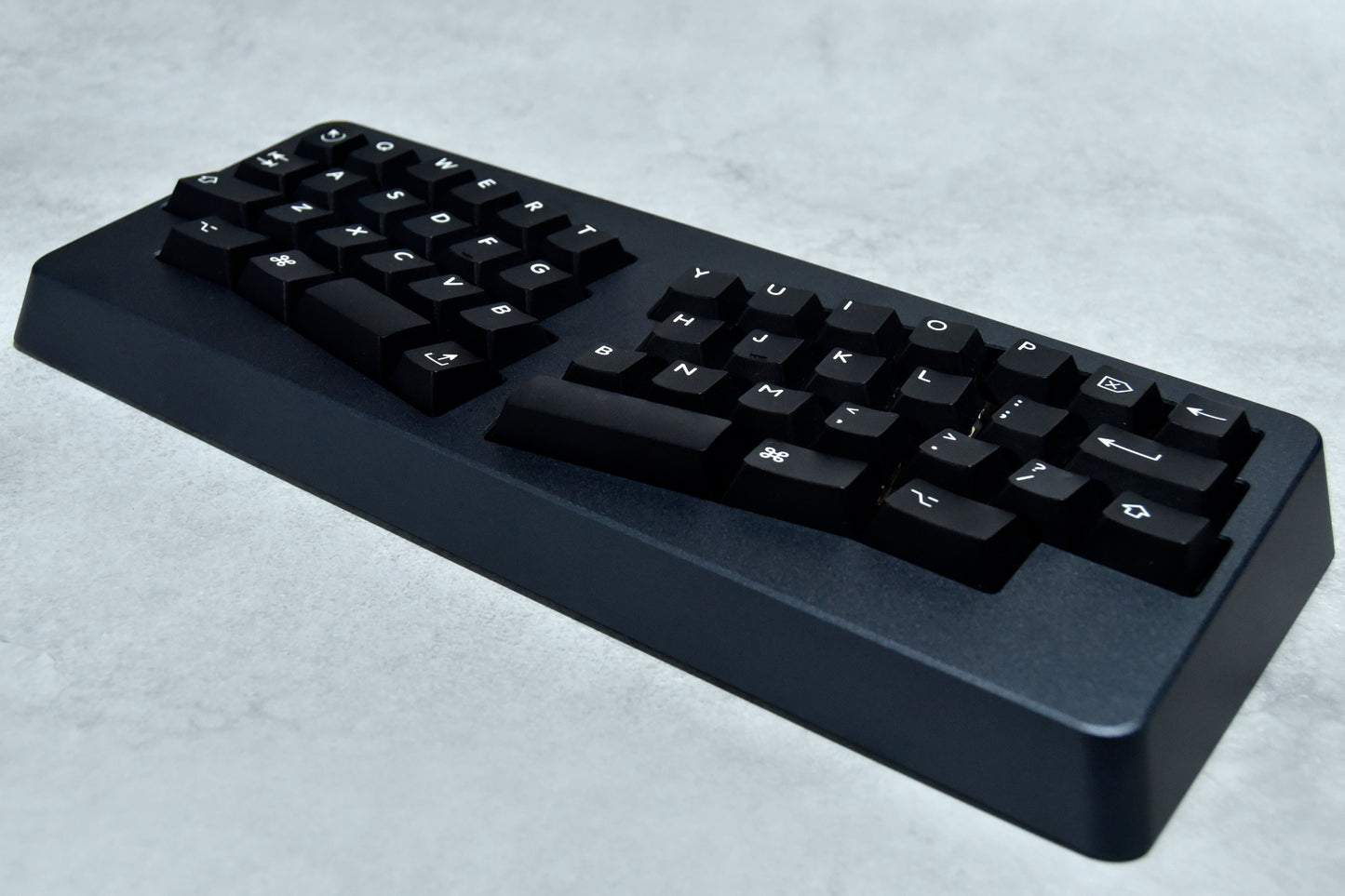

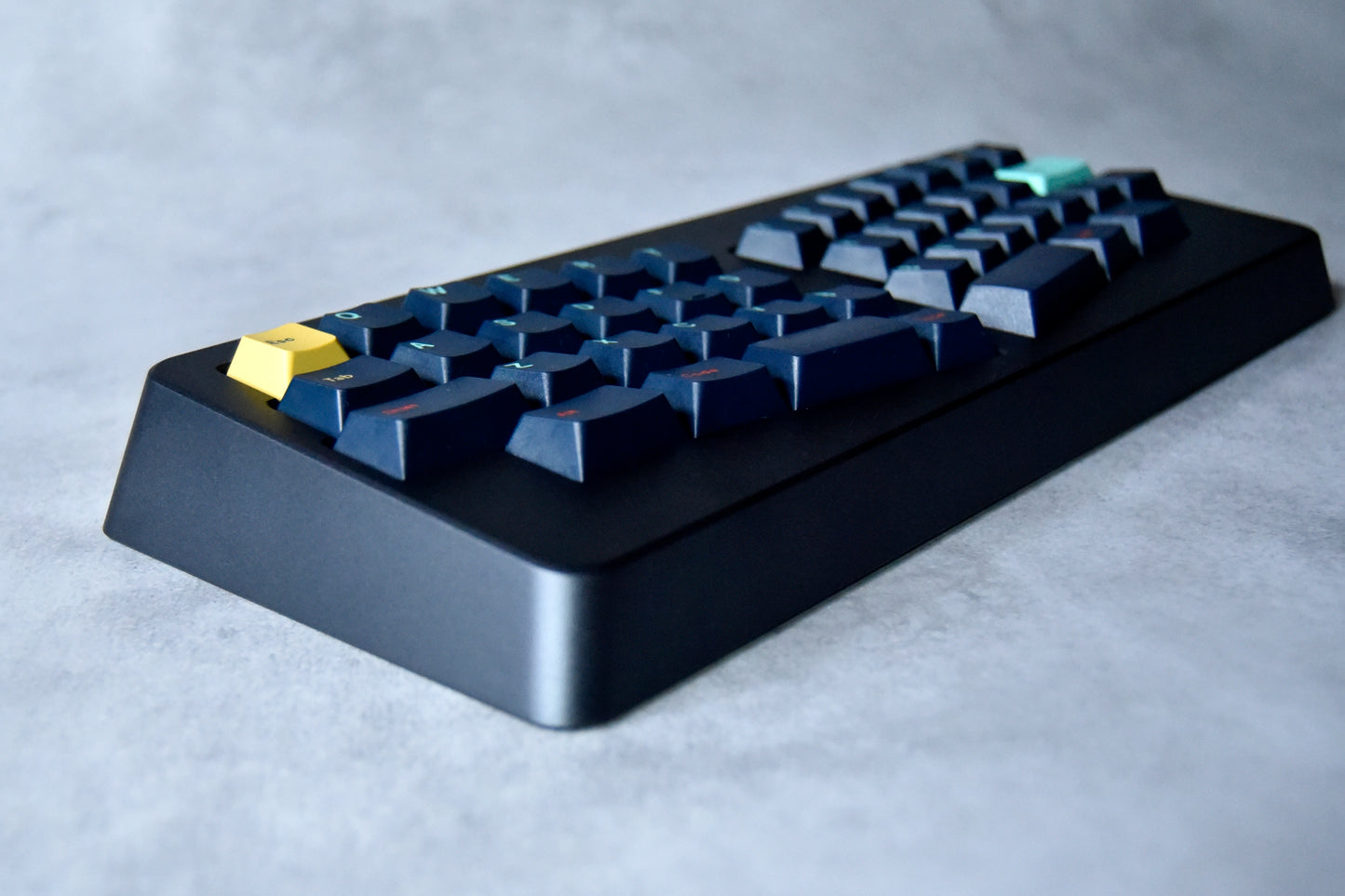

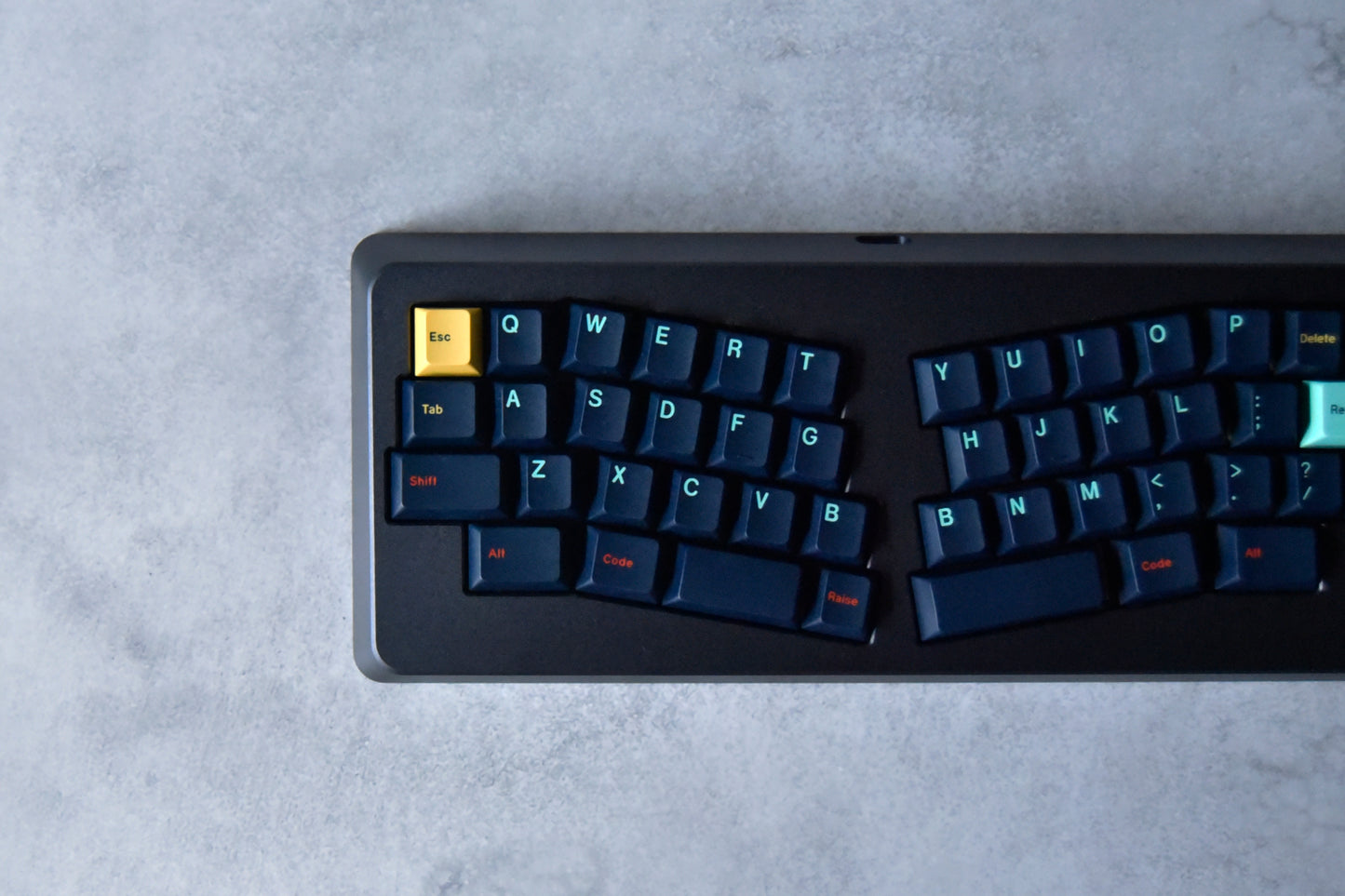

Yak40 is an Alice-like 40% keyboard with aluminum housing.

ETD

within 3 weeks.

I have a separate workshop, so I can only work on shipping on weekends when my schedules allow.
Please note that this may take some time.

Spec

• Layout: Alice-like 40% layout
• Mounting style: Top mount/Burger mount
• Compatible key switches: MX (compatible) key switches only
• Typing angle: 6 degrees

• Base dimensions: 306x126mm

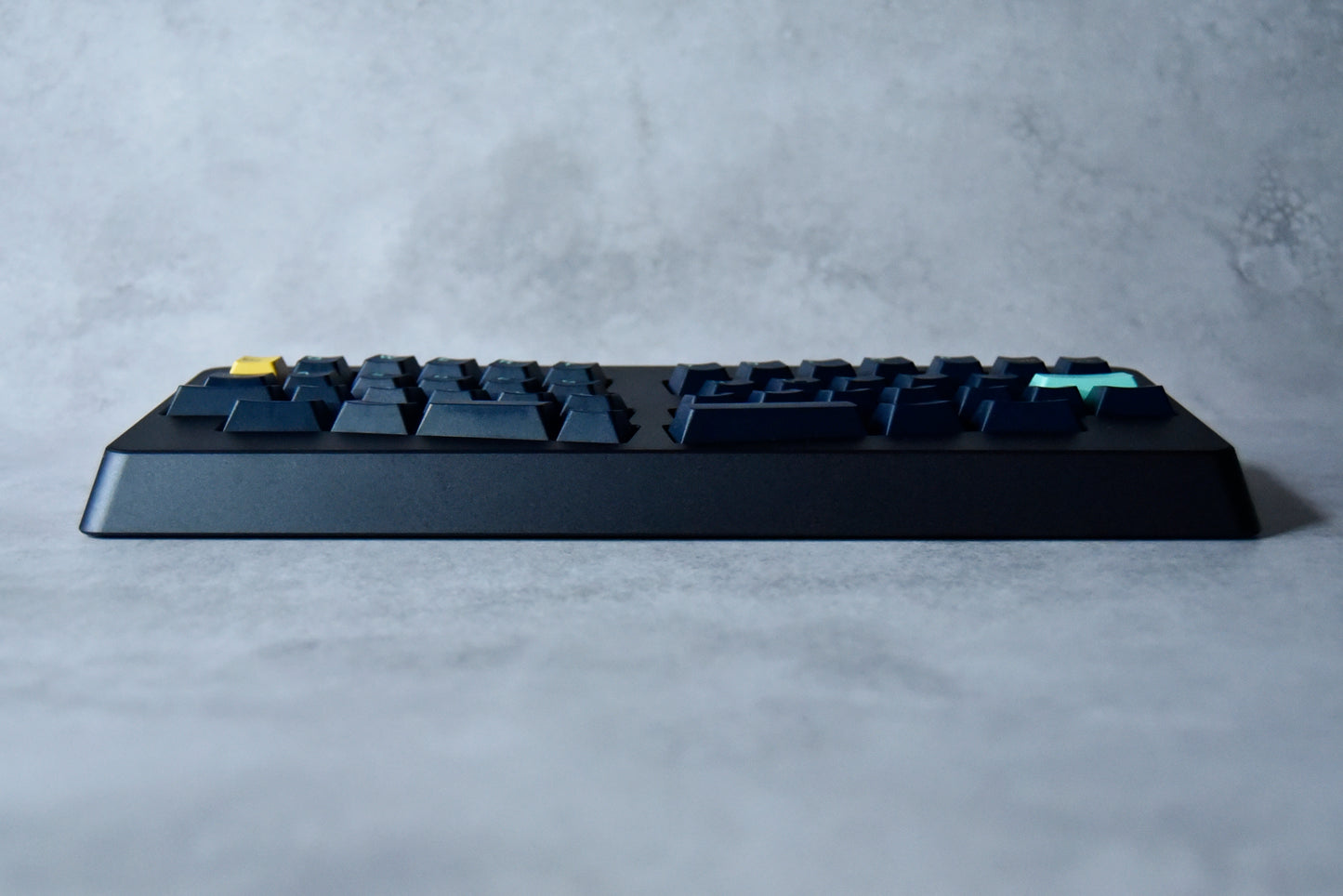

• Front height: 23mm
• Surface treatment:

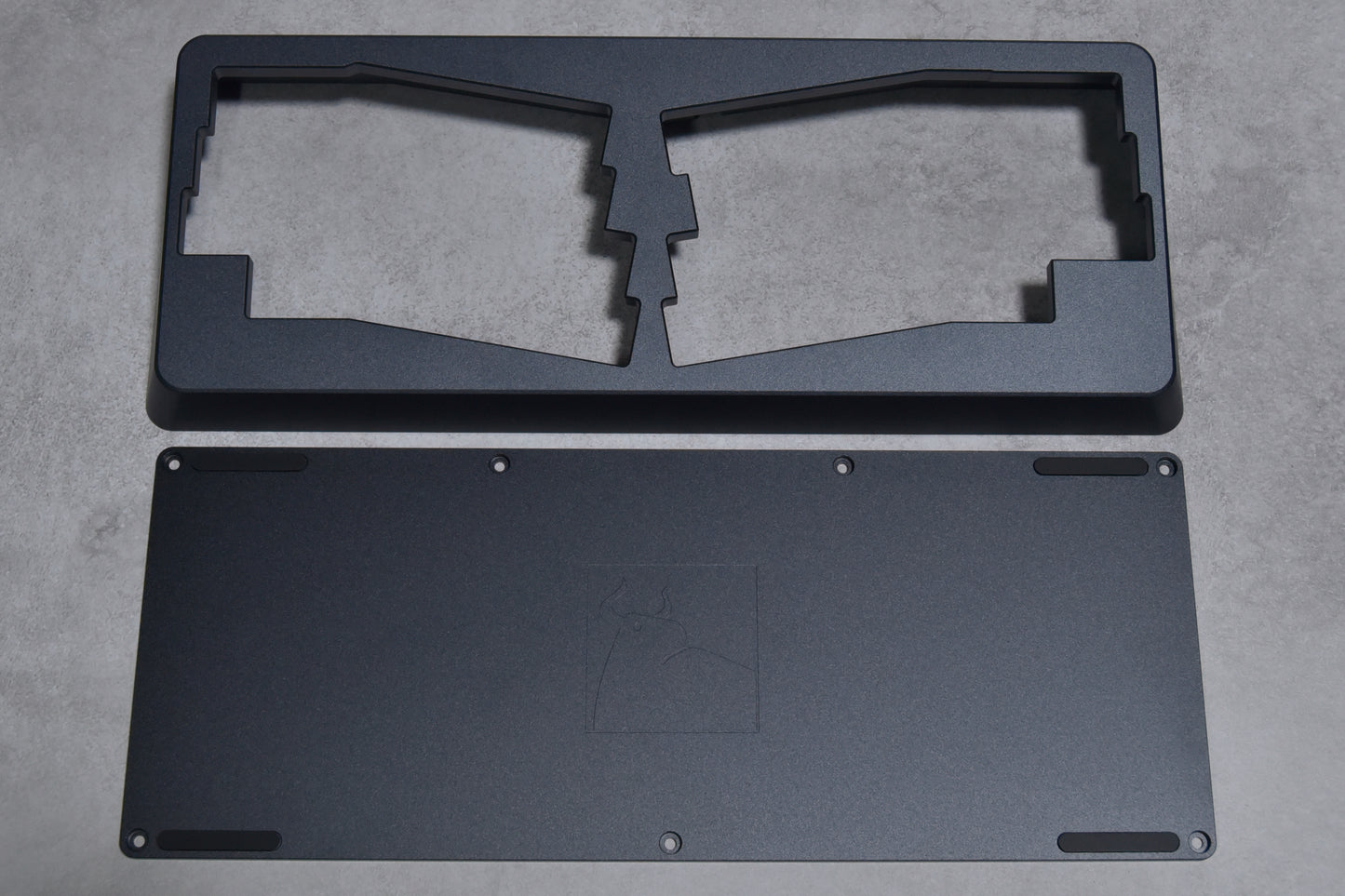

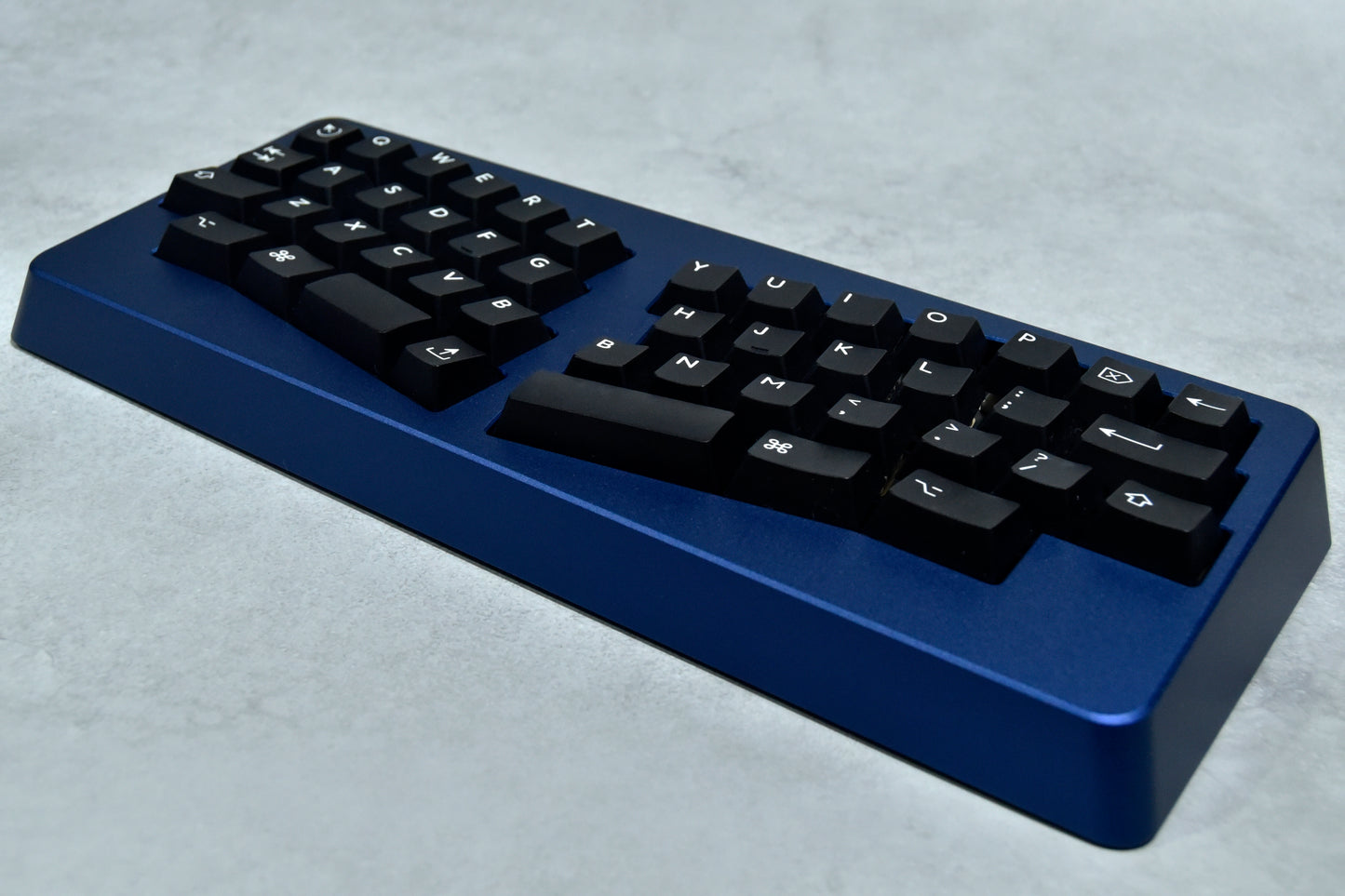

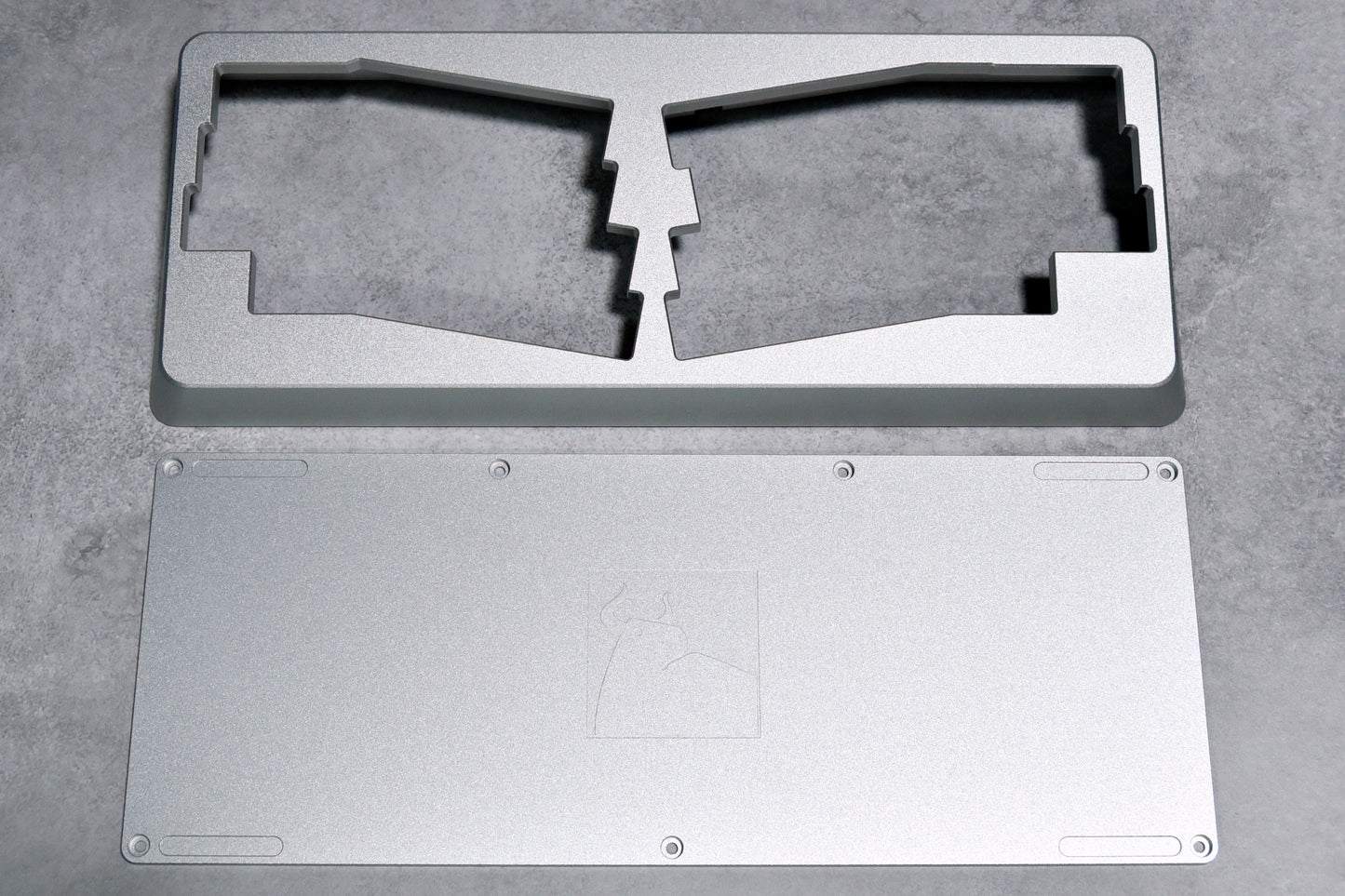

  • Grey, Silver, Blue: Anodized

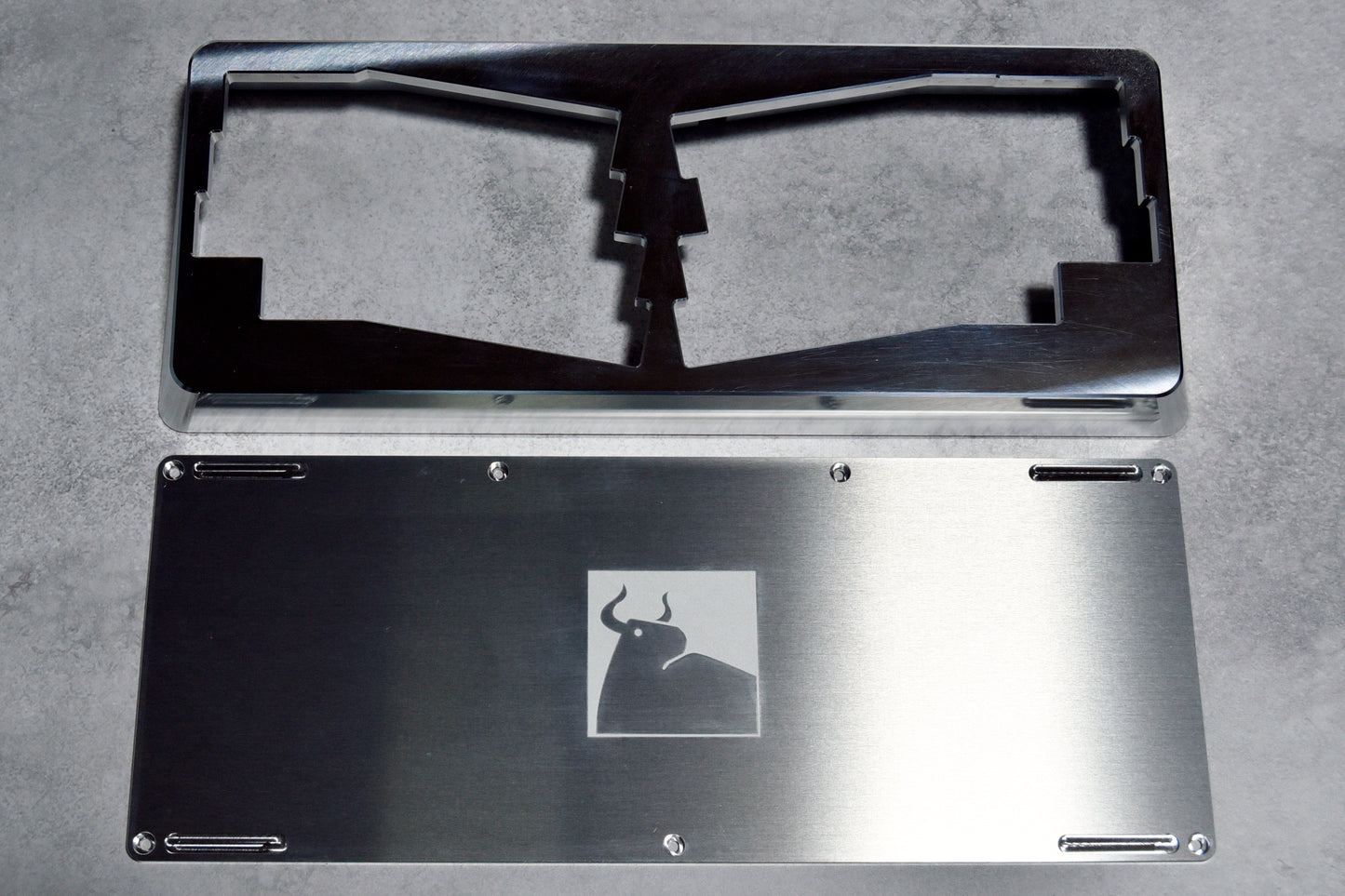

  • RAW: No surface treatment and no coating
• Plate: FR4
• PCB

  • Hotswappable
  • No flex cut
  • RP2040 MCU
  • 128Mbit flash memory

  • Parts including sockets are already soldered
• Firmware: Vial

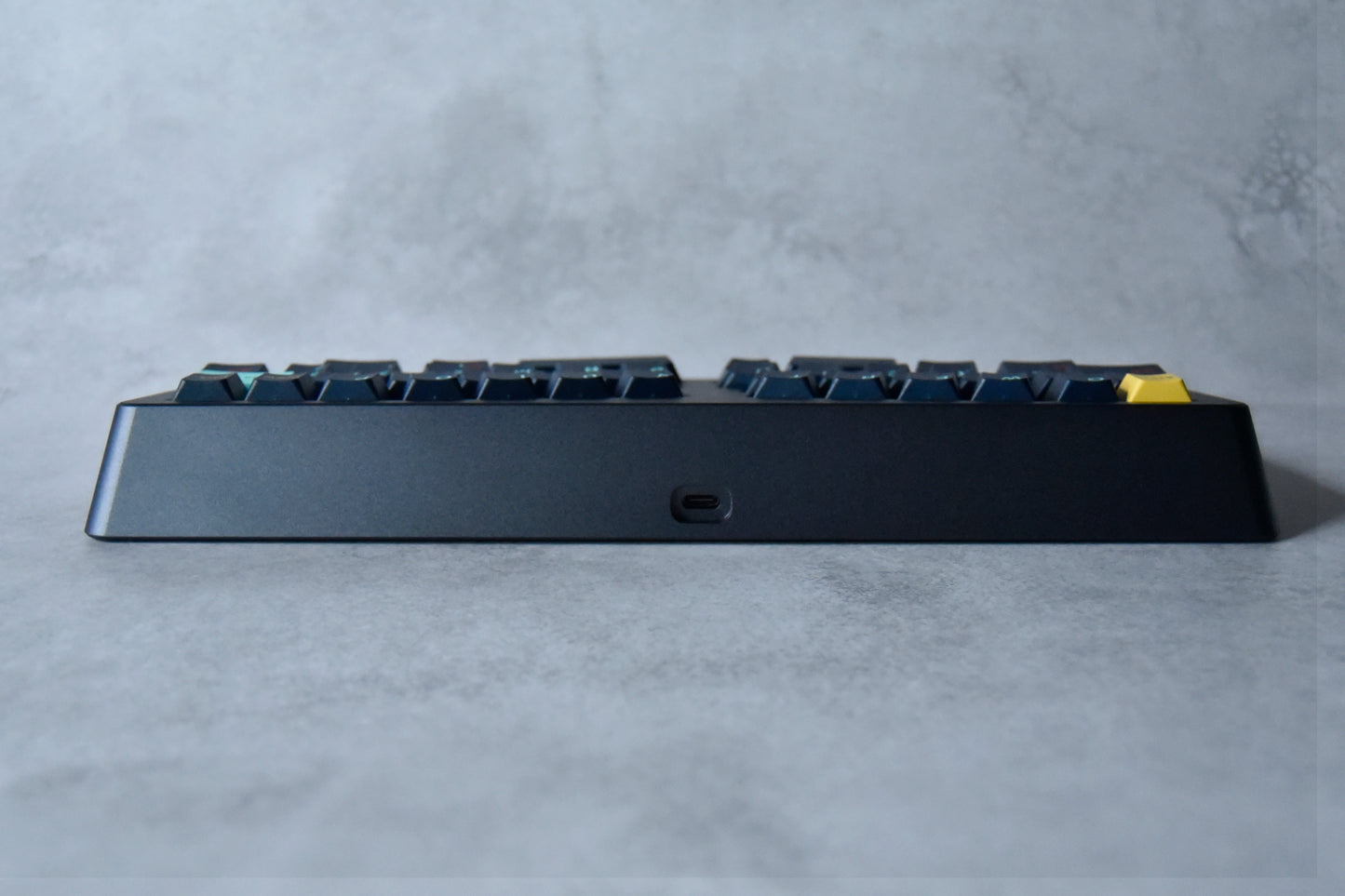

• Connection method: USB Type-C wired

Layout

Keyboard Layout Editor

• The layout can be selected from the Vial.
• Soldering is required only if you choose the rotary encoder.

Typing sound

https://youtu.be/u8v4e49nT1U?si=bgAIqtT_FeGkpmmI

Kit Contents

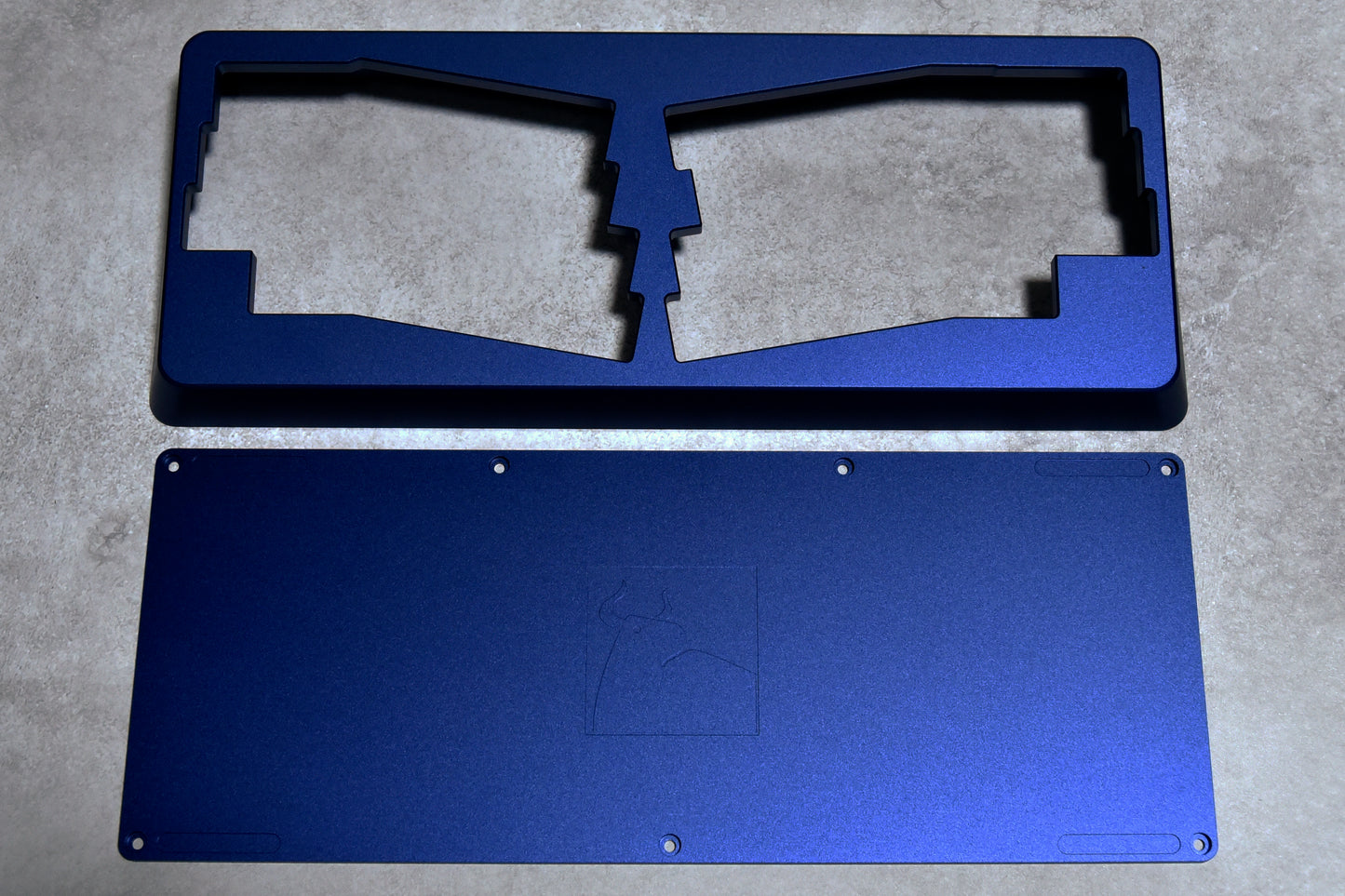

• Aluminum housing x1
• PCB x1
• Daughter board (including cable to connect to PCB) x1
• Middle Foam x1
• FR4 plate x1

• Rubber feet
• Various screws and standoffs
• Burger mount O-ring
• Screwdriver x1
• Carrying case x1

This is a barebone kit and does not include the following items. Please prepare them yourself.

• USB Type-C cable
• Keyswitches
• Keycaps
• Key Stabilizer
• Rotary Encoder (EC12 compatible)
• Rotary Encoder Knob

Notes

Please read all of the following notes and make a purchase only if you agree to them.

Common

• You will need to assemble the product, write the firmware, change the keymap, etc. yourself.
• You will need to solder the rotary encoder yourself to install it.
• In the design model, the following points are connected smoothly, but due to manufacturing errors, there may be slight edges.

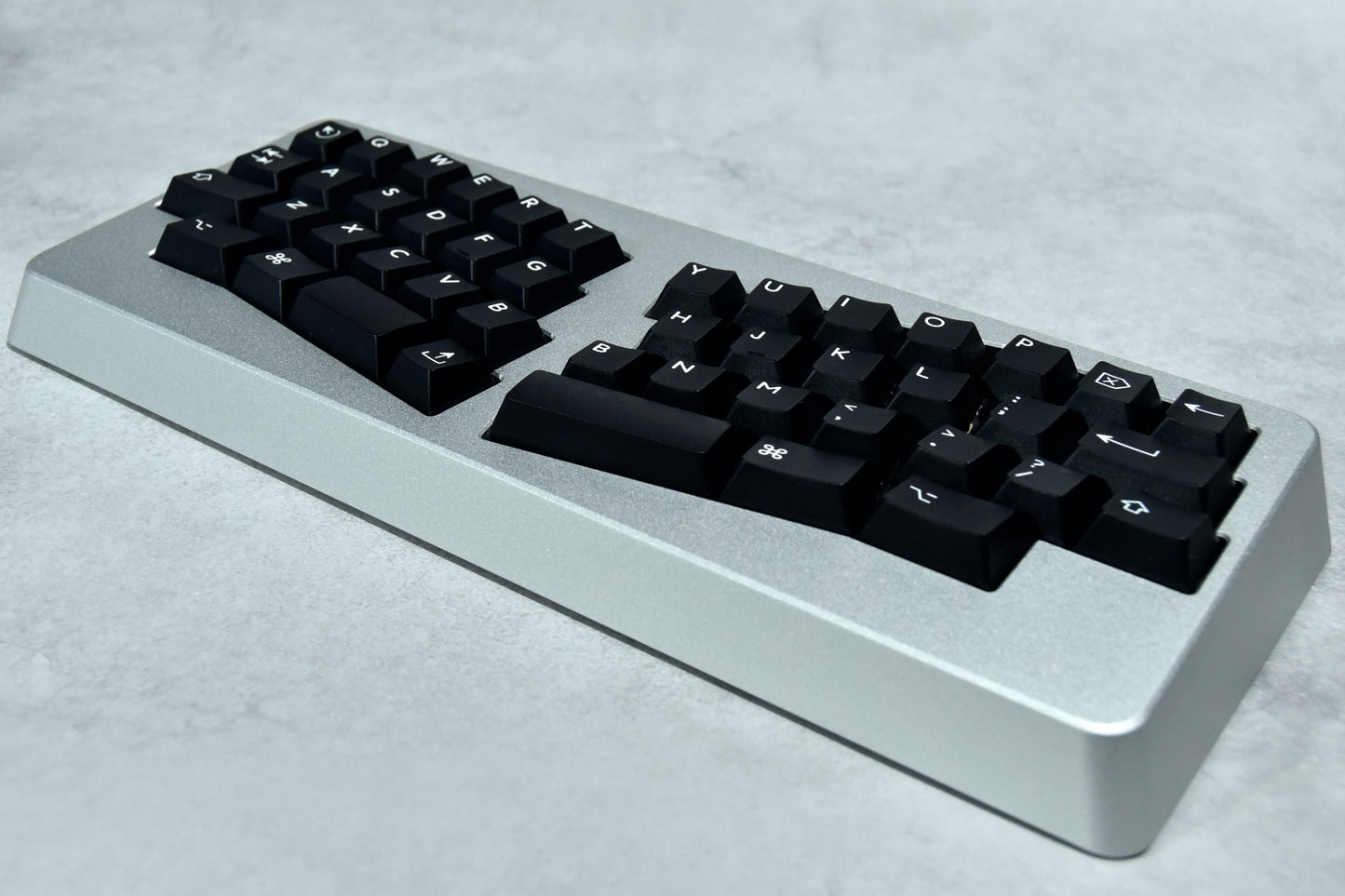

Gray, blue, and silver

• Some of the parts that will not be visible when assembled may not have high quality anodizing.

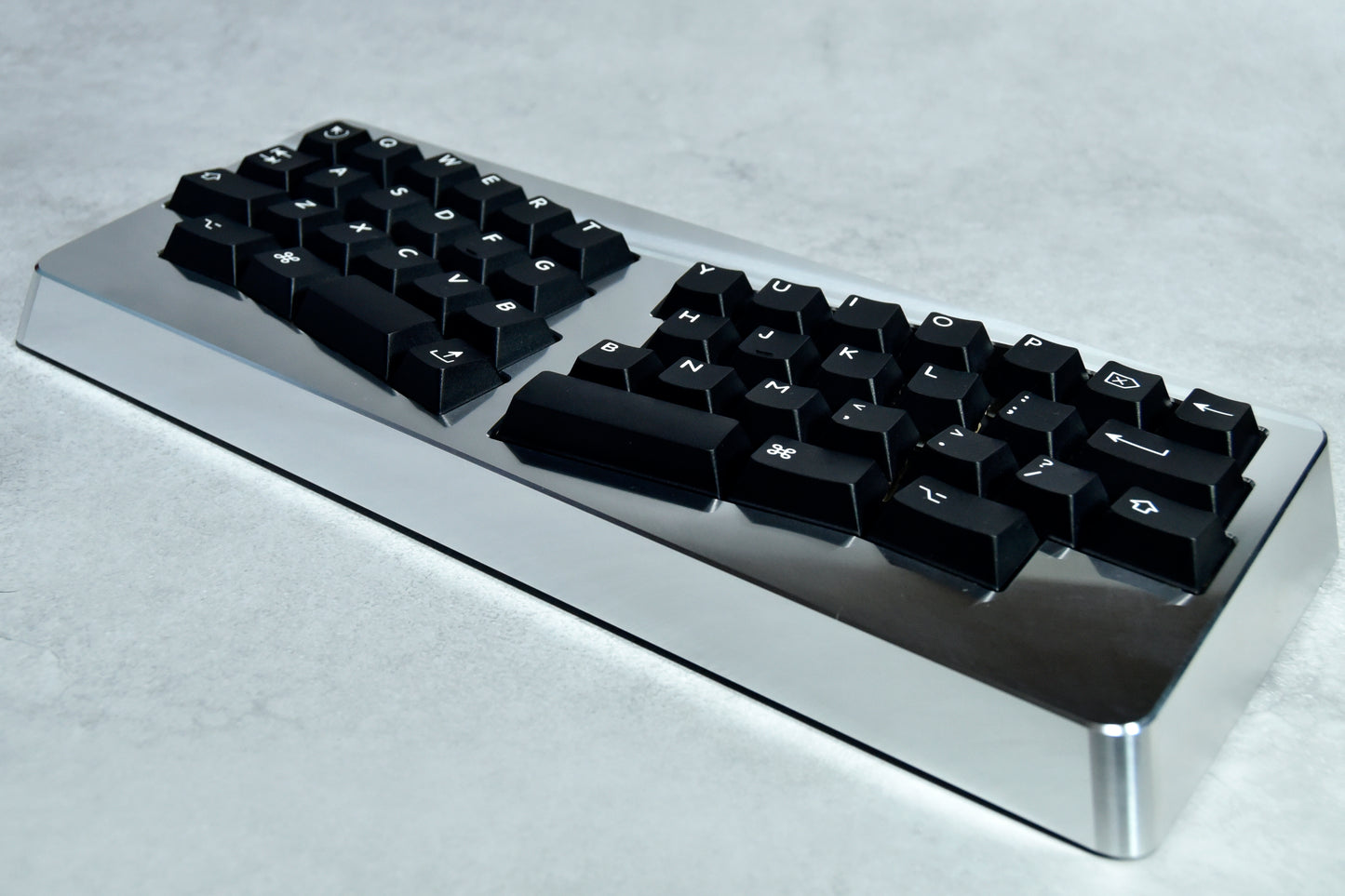

RAW

• Some products may have cutting oil or small scratches remaining on the surface.
• Since the surface is not coated, rust and other issues may occur over time.
• We take great care in handling our products, but we cannot guarantee the gloss of the product when it arrives.
